MC Gateway UE

MC Gateway UE, which facilitates MCX services on legacy devices such as cab radios, dispatch consoles and donor RoIP gateways.
It provides configuration guidance and outlines the API communication between the MCX AS and MC Gateway UE.

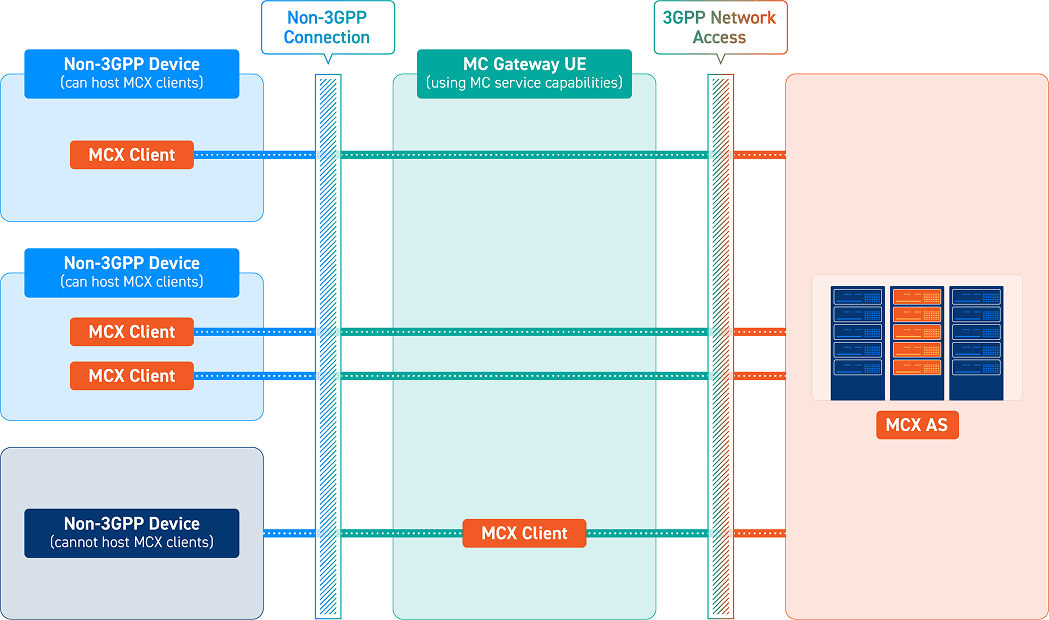

The MC Gateway UE acts as middleware to enable Push-to-Talk (PTT) and Push-to-Video (PTV) services between MCX AS and non-3GPP applications.
It comprises a SIP stack layer, MCPTT CSC interface and UDP interface which allowing point-to-point communication without requiring significant modifications to legacy devices.

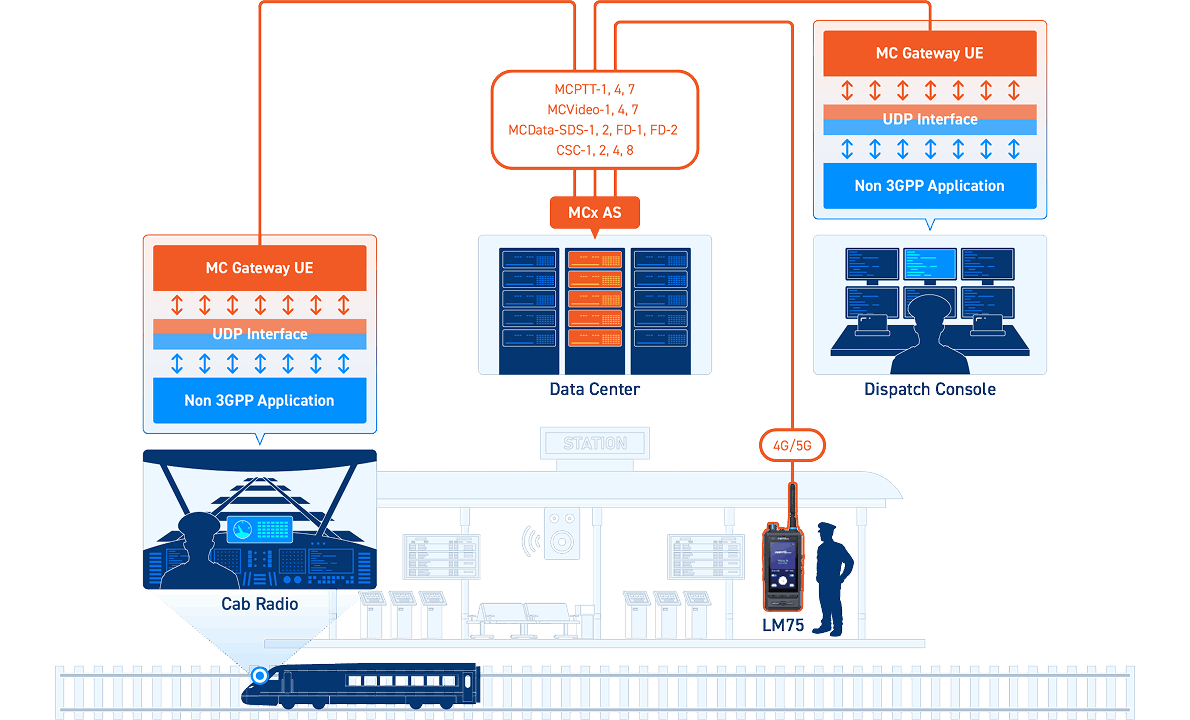

MC Gateway UE Architecture

Cybertel MC Gateway UE runs in user mode on both Windows (10, 11) and Linux (kernel 3.x/4.x/5.x) platforms, ensuring seamless integration with existing devices. It is a standalone process that communicates with the MCX server, executing call features and reporting status updates.

Key Features

• Supports MCPTT services based on 3GPP standards.
• Provides interoperability for legacy devices, including cab radios, dispatch consoles, and RoIP gateways.
• Applicable in Public Safety, Utilities, Metro, and Railway industries.
• Successfully deployed for over 20 customers, including Korea Fire brigade and Metro/Railway systems.
• Enables dynamic group management, location-based grouping, and functional aliasing.

Functional Components

• MC Gateway UE SIP Stack: Handles session initiation and call signaling.

• MCPTT CSC Interface: Ensures secure and reliable communication with the MCX server.

• UDP Interface: Facilitates device-level communication with legacy hardware.

• Administrator Controls: Allows group management, terminal status monitoring, and call control.

Use Cases

• Railway Communications: Migrating legacy cab radios in rolling stock

• Public Safety Operations: Integrating third-party CAD solutions with MCX services.

• Dynamic Grouping: Supporting multi-junction setups for metro and railway operations.
