Integration
Cybertel Bridge provides a comprehensive range of integration capabilities covering interfaces and systems essential to mission-critical service deployment, including interworking functions, QoS control, authentication, OSS, and multimedia delivery, ensuring seamless compatibility and network-wide interoperability.
OSS
In critical communication network, OSS (Operations Support Systems) form the backbone are for service assurance, resource provisioning, performance monitoring and billing management.
Cybertel MCX AS integrates with operator OSS ecosystems using industry-standard protocols such as SNMPv3, Syslog, SFTP/XML and REST APIs.
This enables real-time visibility and control over mission-critical services.
Key Benefits
-
Service Monitoring & Fault Isolation
Instant visibility into alarms, server health and session KPIs
-
Secure & Granular SNMPv3 Support
Supports encryption, authentication and MIB-based OAM supervision
-
Automated Reporting & Billing Support
Interface with mediation systems for real-time usage tracking
-
Multi-Tenant Orchestration Ready
Tenant-level provisioning, license control and usage visibility
Use Cases
- Centralized NMS monitoring for MCX services
- Integration with third-party billing platforms via CDR + SNMP
- Real-time SNMPv3-based alarm trap generation
- Inter-tenant management (e.g., Utility A/B/C group control)
Northbound Integration Interfaces
| Interface | Purpose | Protocol | Format |
|---|---|---|---|
| SNMPv3 | Fault & performance monitoring | SNMPv3 | CYBERBASE-MIB |
| Syslog | Event logging (session, daemon, security) | UDP | RFC 5424 |
| PM/FM File Export | KPIs and alarms | XML/CSV | 3GPP TS 32.435 |
| Provisioning API | User, group, license | HTTPS | JSON / XML |
SNMPv3 Security Levels Supported:
- noAuthNoPriv: basic
- authNoPriv: secure auth
- authPriv: full encryption (AES)

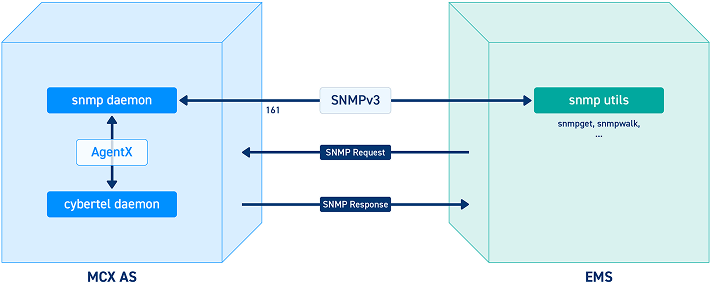

SNMPv3 in Action
-
Cybertel’s MCX OAM subsystem includes:
· SNMP Daemon (snmpd)
· Custom SNMP Subagent (cyberteld)
· CYBERBASE-MIB definitions
· Real-time polling & trap support
Tested with: Net-SNMP, Zabbix, Nokia NetAct
SNMP Trap Examples
| Trap Field | Description |
|---|---|
| cyberTrapLevel | Critical/Major/Minor severity |
| cyberTrapDesc | Daemon down, high CPU, DB failover, etc. |
| cyberTrapTime | Timestamp |
| cyberTrapLocation | VM or region info (e.g., MCPTT01.com) |
- SNMP Trap port: UDP 162 (fixed)
- Polling default: every 5 minutes

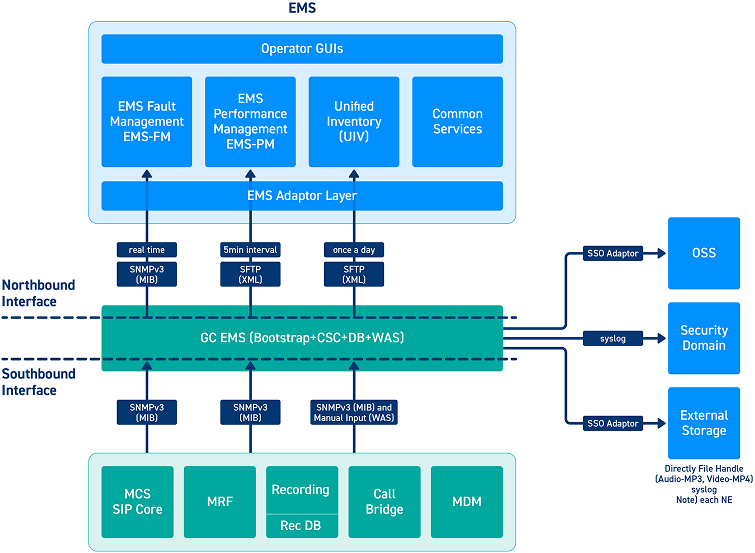

Cybertel OSS Integration detail
-
Fault Management Features
- Real-time alarms from MCX core daemons
-
SNMP traps for:
· Service daemon failure
· SIP signalling errors
· Group call exceptions
· Hardware/VM resource thresholds
- Dashboard integration with WAS (Web Admin Service)
-
Performance Monitoring
- Periodic KPI export (5/10/15 min intervals)
-
Includes:
· Active users & dispatchers
· Group call success/fail stats
· Bearer & QCI usage
· Session duration averages
- Export via SFTP/XML to central NMS
- Compatible with Nokia Assurance, NetAct and PSMB reference model
-
Provisioning & Activation
- Multi-tenant user/group provisioning
- License management via web or API
- Supports CSV/XML/JSON formats
- Integration-ready with CRM/ITSM (e.g., Remedy, InfoView)
-
Uses SNMP4J, MyBatis and Nokia Mediation patterns for orchestration.
Why Choose Cybertel for OSS?
- Secure SNMPv3 support with full MIB exposure
- Real-time alarm + KPI collection
- Fully customizable for national MCX networks
- Supports SLA-driven NOC operation and KPI dashboards
- Aligned with commercial deployment architecture
